Industrial 4G Wireless Router with Quectel EP06 Cat 6 SIM Card Slot VPN Data Pass-Through for Integration

Name: Industrial 4G Wireless Router with Quectel EP06 Cat 6 SIM Card Slot VPN Data Pass-Through for Integration
Brand: JTOKEN Official Store
SKU: 4GR518EP06A
Price: 150.57 USD
Availability: InStock

Module EP06-A EP06-E

Antenna W/O GPS Antenna W/GPS Antenna

Product variants

$150.57 USD

~~$160.57 USD~~ $150.57 USD

Sold out

Quantity

Overview

V518 industrial router is one of wireless products with excellent performance based on network requirements of 3G and 4G. It’s primarily used for data transmission, like data pass-through, image transmission, device surveillance and wireless router network etc.

V518 adopts high performance 32-bit processor, which is able to process protocols and huge data with high speed. It can be well matched with multi 3G/4G industrial modules (3G: WCDMA/EVDO/TD-SCDMA, 4G: TD-LTE/FDD-LTE). It’s built-in with 100M ethernet interface, 300M WIFI wireless interface, comm port, which can be integrated with multi terminal devices. Basic settings like WEB configuration, device management and remote control are all supported.

Applicable industries:

Electrical, oil, coal, finance, communication, public security, heat, industrial control, meteorological, water conversancy, transportation, municipal administration etc.

Key Benefits

Auto Detection, Auto Reboot When Failed to Dial, Timing Reboot.
VPN Client and Server Mode.
Support VPDN Services by More Than 200 Global Carriers.
Multiple DDNS Dynamic Domain Service.
Site Control, Port Mapping, DMZ Host, Firewall etc.
MAC Black/White List.
Singly User Management(Access/Connection Authorization etc.).
Remote Cloud Management.
Software Watchdog Design to Ensure It will be Online for 7*24H.
Compatible with Most of 4G Module, Auto/Manual 2G/3G/4G.
Compatible with Multiple Card of IOT, Customized APN.
Smart Backup Between Dual Wireless Network.
Smart Backup between Wired and Wireless Network.
Attached Clout Management Platform(Developing).

Specification of Quectel EP06 Series IoT/M2M-optimized LTE Cat 6 Module

SOC	MT7628
Flash	1Gb/64Mb
WIFI(2.4G)	Standard: IEEE802.11bgn 300Mbps(2T2R) Transmission Power: 11n HT40 MCS7 15dBm/11b CCK 18dBm/11G OFDM 15dBm Receiving Sensitivity: -65dBm at 300Mbps/-73dBm at 54Mbps/-86dBm at 11Mbps

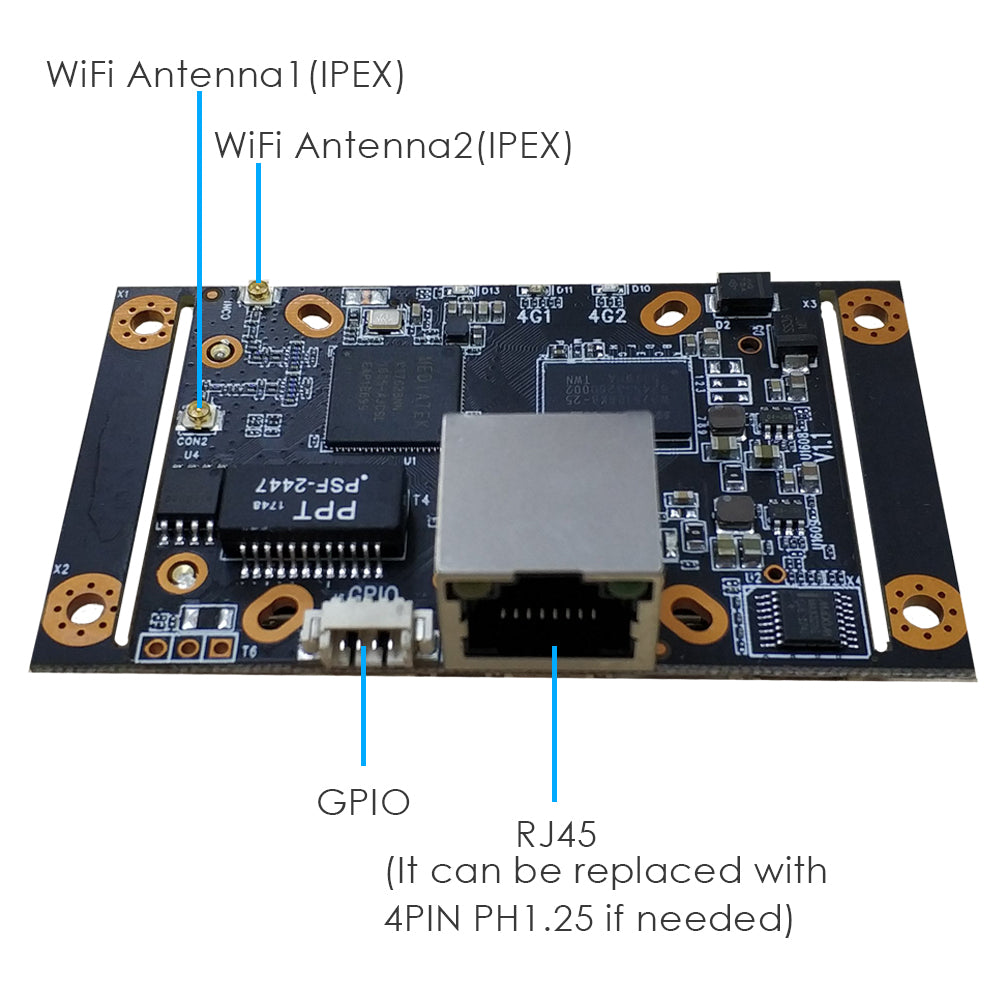

Network Interface	LAN/WAN Pin Interface x 1(10/100Mbps Adaptive), Ethernet Port Can Be Welded If Needed; LAN2 Pin Interface x 1(10/100Mbps Adaptive)
COMM(RS232)	Snap-in Interface (TTL 3.3V or RS232 5V), RS232 By Default
Antenna	WIFI Omnidirectional IPEX Antennax 2, 4G Omnidirectional IPEX Antennax 1
SIM Card Slot	Micro SIM slot, Gap Outwarded, Hot-Plugged Not Supported
Button	Reset Button(Press For More Than 5 Seconds to Reset)
Indicator	4G LED(Green): Steady Green When Connected, Quick Flash When Dialing, Slow Flash For Failed Connection; Signal LED(Red): Red When Signal is Bad; Signal LED(Green): Green When Signal Is Strong; Signal LEDx 2 Both Not Lit Means No Signal, No SIM Card, No 4G Module
Power Supply	DC Pin(with snap-in) 5~16V/2A, 12V Recommended
Power Consumption	Less Than 500mA When Powered by 12V(Full Load))
Network Connection	3G/4G, Wire, Wireless, Bridge, Relay, WISP, Intelligent Backup Mode
Software Features	Multiple modes (4G/Wire Gateway/Wireless/Wireless Bridge/Wireless Hotspot/Wireless Relay); APN Auto Detection(more than 400 ISP supported) and APN customization; RS232 Pass-through(Data Control/Customized Registration Pack/Customized Keep-Alive Pack; RS232 Pass-through(Server and Client Simultaneously Work/Serial Port Data Statistics); VPN(L2TP Server and Client/PPTP Server and Client); Network Keep-Alive Mechanism(ICMP/DNS Detection); Auto Reboot(Timing or Reboot when free); DDNS(Oray or other ISP supported), UPNP, Access Control, Firewall, Port Mapping, DMZ; WOL Local Broadcast Discovery Protocol Interface (Used for Discovering Local Devices); HTTP Protocol Control Interface (Used for Controlling the Device).
Developing Port	Local Broadcast Discovery Protocol Interface(Used for Discovering Local Devices; HTTP Protocol Control Interface(Used for Controlling the Device); Telnet Command Control Interface; Remote Cloud HTTP Control Interface(Used for Integration with Cloud Platform Management); Please Contact Sales for Protocols in Detail.
SDK	SDK for Farm, Can Develop Related Application Based On This SDK
Device Management	Network Time Synchronization, Synchroninzed with PC and Cellphone; Backup and Import Configuration; Online and Local Upgrade; Remote Management; Telnet (Terminal) Command, Serial Port (TTL) Command; LED Indicator On/Off, Local and Remote Log.
Max. Users	Wireless Connection: 60nos, Wired Connection: 100nos (Theoretically)
Browsers Requirement	IE9.0/Chrome 60.0.0/Firefox 55.0.0/ Safari:5.0.0 Later Version
Working Temperature	-20°C ~ +70°C (-20°F ~ +158°F)
Storage Temperature	-20°C ~ +85°C (-20°F ~ +185°F)
Dimension	73.4mm42mm11.8mm (With Side Board and Position Hole)
