Introduction

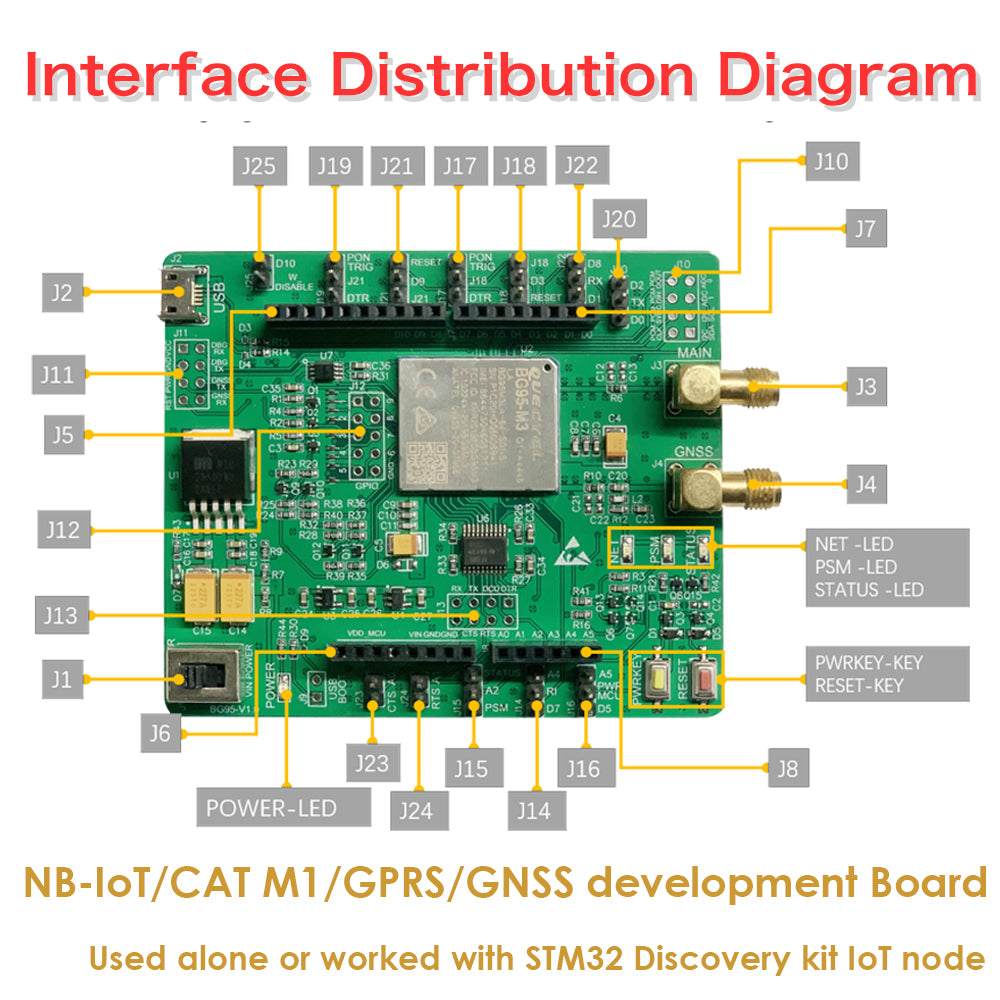

TB-BG95-Board is a NB-IoT/CAT M1/GPRS/GNSS development Board with Arduino interface. Its physical size is 82.4mm × 68.8mm. TB-BG95-Board development Board can be used alone or in conjunction with STM32 Discovery kit IoT node.
Specifications
| Power Supply |
USB interface:
Supply voltage range: 4.75V~5.25V
Typical supply voltage: 5.0V
Arduino interface:
Supply voltage range: 4.75V~5.25V
Typical supply voltage: 5.0V
|
| Transmitting Power |
21dBm |
| Temperature Range |
Operation temperature range: -35°C ~ +75°C 1)
Extended temperature range: -40°C ~ +85°C 2)
Storage temperature range: -40°C ~ +90°C
|
| USIM Interface |
Support 1.8V external USIM card
|
| USB Interface |
Used to switch the power supply mode of development board.
Support three UART ports.
Main USB Serial port:
- Used for AT command communication and data transmission.
- Default is 115200 BPS. Can be used for AT command transmission and data transmission, support RTS and CTS hardware flow control.
Debug USB Serial port:
- Used for firmware debugging
- Default baud rate: 115200bps
GNSS serial port：
- Default support 115200 BPD for GNSS data and NMEA sentence output.
|
| RESET Button |
Used to reset BG95 module |
| PWRKEY Button |
Used for power on and off BG95 module |
| Physical Characteristics |
Size: (82.4±0.15)mm × (68.8±0.15)mm |
| Firmware Upgrade |
Firmware upgrade via main USB port or DFOTA |
| Antenna Interface |
50Ω characteristic impedance |
NOTE
- 1) Within operation temperature range, the module is 3GPP
- 2) Within extended temperature range, the module remains the ability to establish and maintain an SMS*, data transmission, etc. There is no unrecoverable malfunction. There are also no effects on radio spectrum and no harm to radio network. Only one or more parameters like Pout might reduce in their value and exceed the specified tolerances. When the temperature returns to the normal operating temperature levels, the module will meet 3GPP specifications again.
- “*” means under development.
