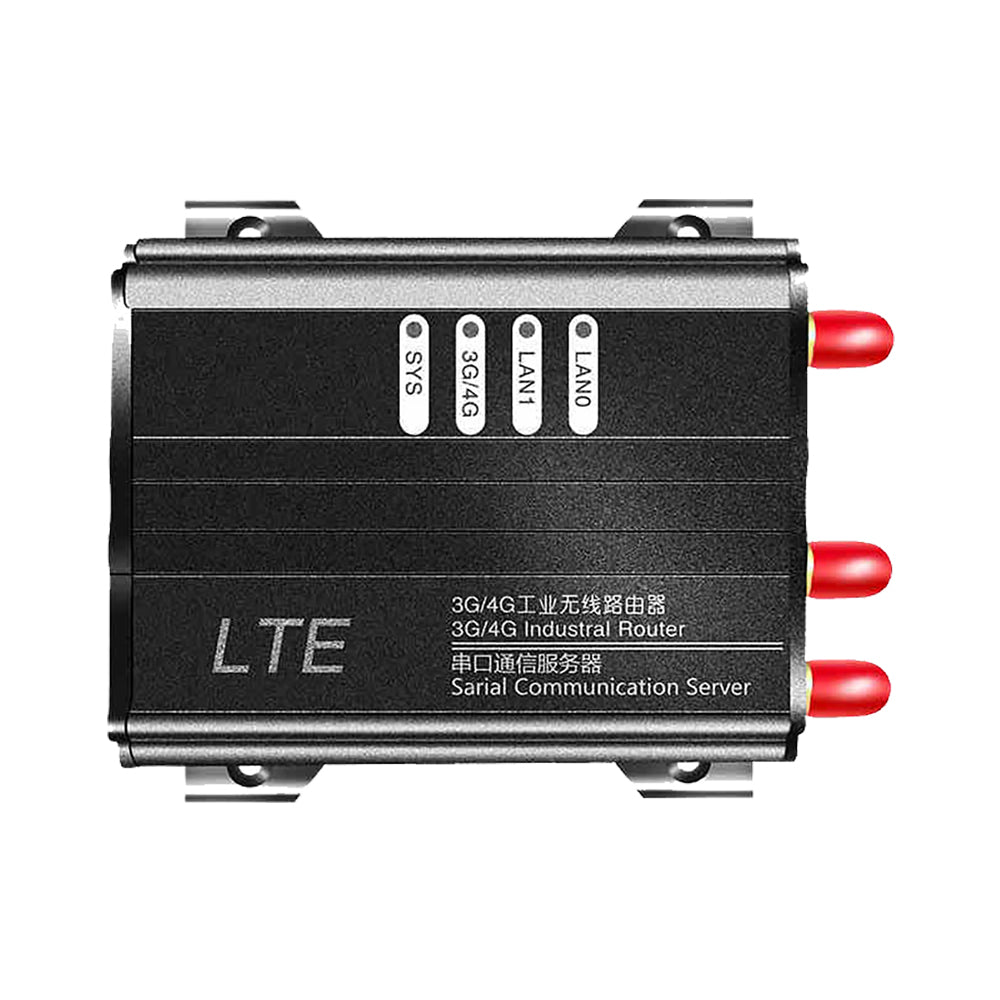

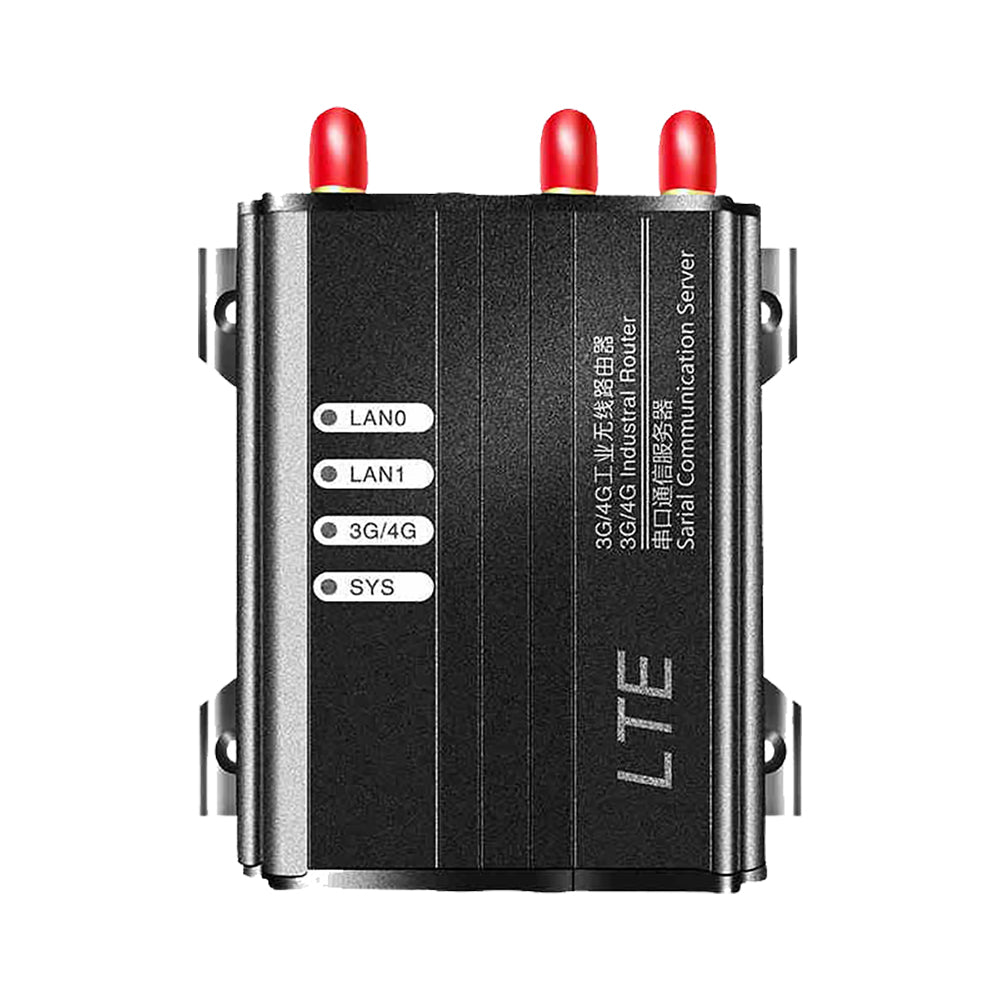

4G Industrial LTE Router w/Quectel EC25 Cat 4 Module SIM Card Slot Wide Voltage DC7-35V VPN PPTP L2TP
Regular price
$151.57 USD
Regular price
$161.57 USD
Sale price
$151.57 USD
Unit price
/
per
Couldn't load pickup availability
Share
Overview

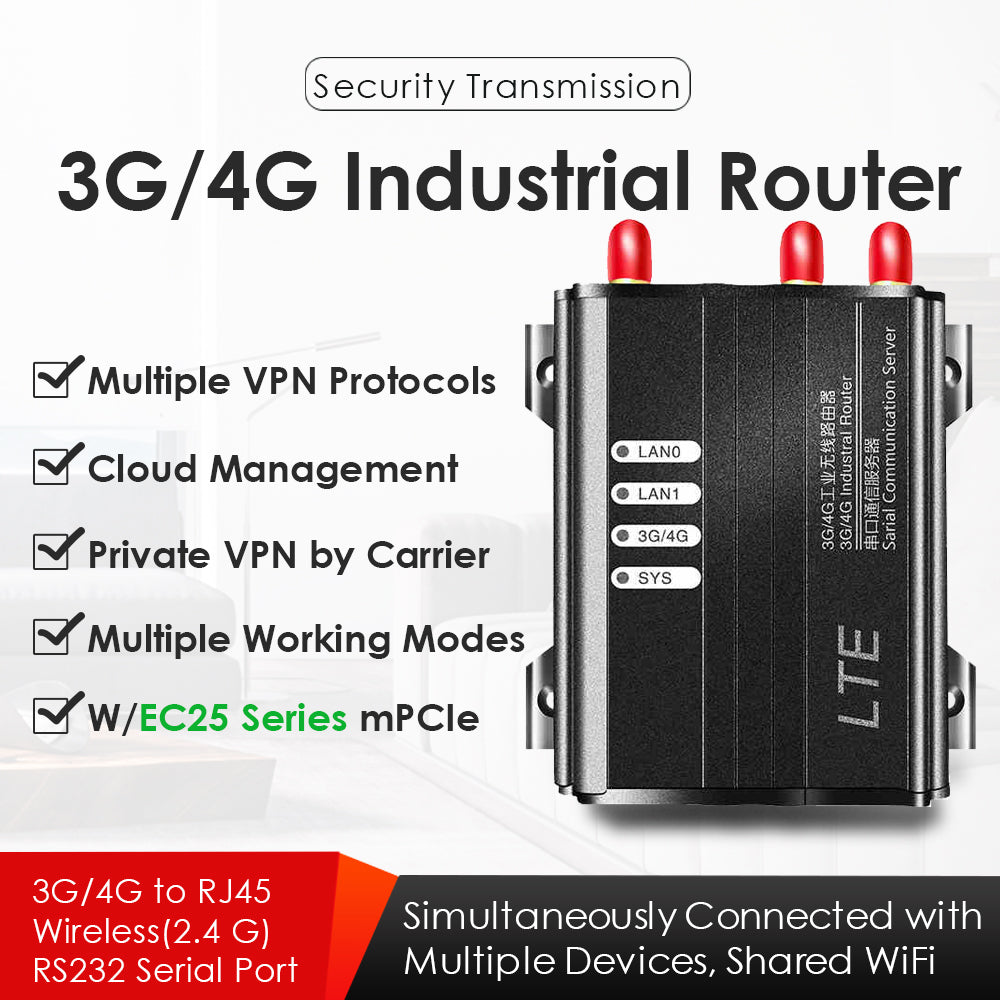

V519-industrial 3G/4G router-adopts high performance 32-bit processor, high speed process protocol and large data, equipped with multiply 3G/4G industrial modules(WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE), provides 10/100M adaptive ethernet port, WiFi wireless port, serial port, integrated with multiply terminal devices,easy to do configuration via WEB and remote control.
Applicable industries:
- Electrical, oil, coal, finance, communication, public security, heat, industrial control, meteorological, water conversancy, transportation, municipal administration etc.
Specification
| Parameters of WiFi | |
| Basics | Max. Transmission Rate: 300Mbps. |
| Working Band: 2.4GHz. | |
| Wireless Mode(Option): 11b/g/n/, 11bg mixed , 11bam mixed (Def). | |
| Wireless Mode(Option): 11a/n on1y 11an mixed(Def). | |
| SSID Broadcast Switch Supported. | |
| Quantity of Users | 30x WiFi Users Connected Simultaneously Supported. |
| 200x Users via Ethernet Cable Connected Simultaneously Supported. | |
| Safety Parameters | Support WPA(Individual)/WPA2(Individual)/WPA-Mixed(Individual). |
| Support TKIP/AES/Auto Encryption Algorithm. | |
| Transmission Distance | Outdoor Without Barriers Up to 200 Meters. |
| Parameters of System | |
| GPU | Industrial High Performance Embedded MIPS CPU, main frequency 580Mhz. |
| MMU | With MMU memory management unit built-in CPU, it can prevent system abnormality caused by memory spilling. |
| FLASH | 128 Mbits, have enough memory to store program and data. |
| DDR2 | 1024 Mbits, have enough cache to improve arithmetic speed of system. |
| Parameters of Interfaces | |

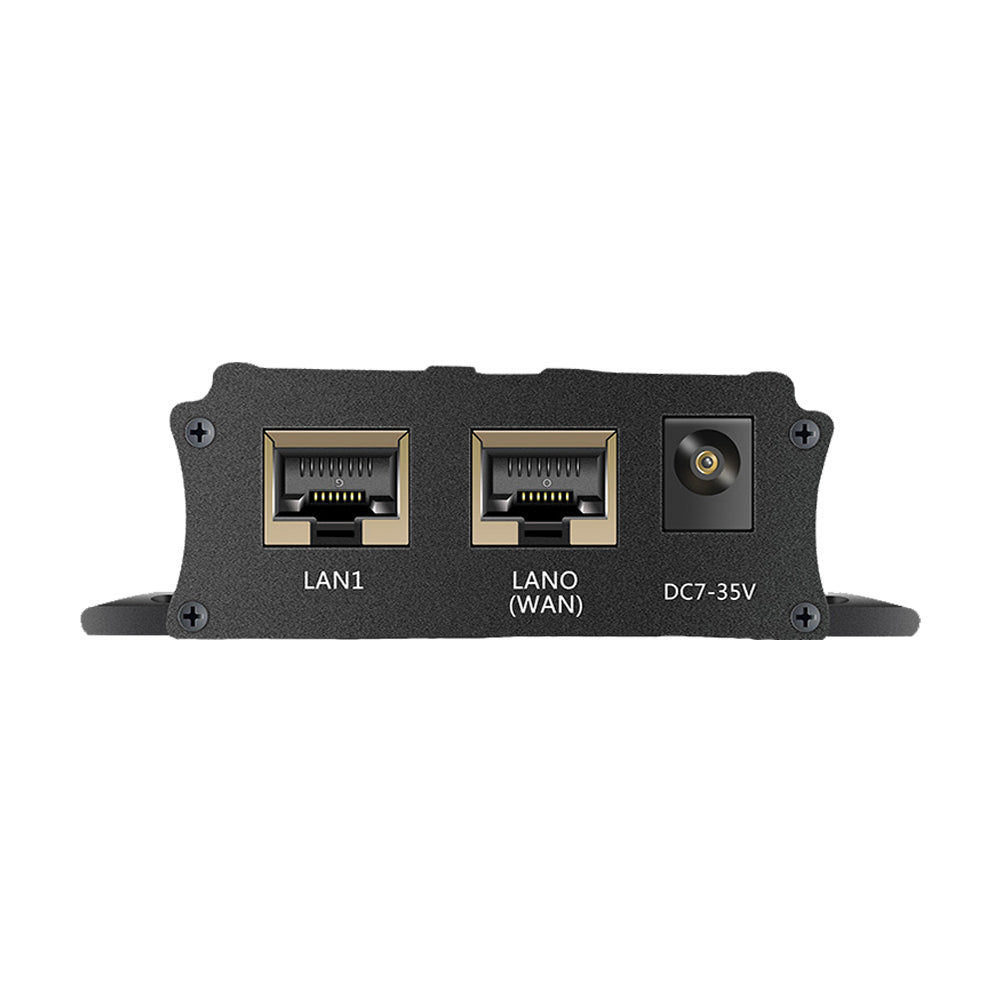

| WAN | 1x 10/100M adaptive WAN port, isolation built-in, auto flip supported (Auto, MDI, MDIX), PPOE supported. |

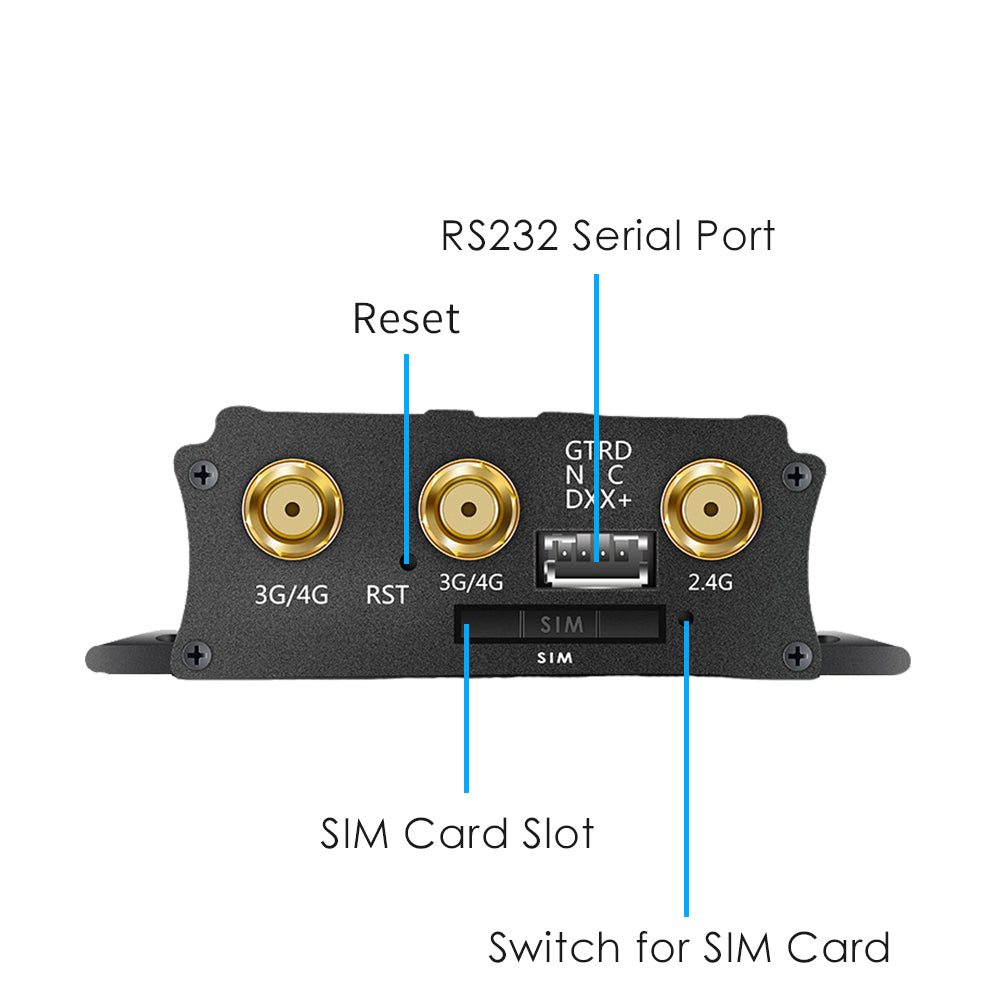

| Serial Port | RS232 |
| Indicators | 4x Indicators. |
| Antenna Port | 3x Antenna Ports, Standard SMA Antenna Port. |
| USIM Slot | 1x SIM Slot |
| Power Port | Standard DC connector. |
| Parameters of Power | |
| Input Voltage | Wide voltage designed, DC7-35V, adapter can power it on directly and it has buit-in power reverse and over-voltage/current protection. |
| Adapter | DC12V 1.5A |
| Communication Current | <300mA |
| Standby Current | <150mA |
| Other Parameters | |
| Case | Adopt metal case, anti-radiation/interference, safe isolation between case and system, lightningproof, applicable for serious conditions. |
| Outline Dimension | 82mm*82mm*24mm(3.2in*3.2in*0.9in) |
| Package Dimension | 250mm*170mm*75mm(9.8in*6.7in*2.9in) |
| Weight | 394g(0.87lb, 13.9oz) |
| Operation Temperature | -40°C~+85°C(-40°F~+185°F) |
| Storage Temperature | -50°C~+95°C(-58°F~+203°F) |
| Humidity | 95% (Non-Condensing) |
| Typical Application(WiFi Covered Application) | |
| Finance | Center monitoring, mobile stock transaction and info inquiry; |
| Communication | Power environment monitoring, electric circuit information inquiry; |
| Traffic | GPRS, SMS, GPS vehicle monitoring and dispatch, banknote transport monitoring, school bus monitorning; |
| Power | Power system realtime dynamic monitoring and auto compensation; |
| Heat | Heating system real-time monitoring and maintenance; |
| Police |
Vehicles of police station, 911 and traffic police monitoring and dispatch Security mobile data inquiry like(ID verification, wanted, child lost information etc.) Mobile traffic communication data inquiry like licence plate etc.; |
| Work Site | Mobile work management, other outdoor staff mobile data inquiry; |
| Weather | Data collection & transmission |
| Charge | Charging station monitoring & management, data transmission; |
| Water Resource | Quantity of water monitoring and transmission; |
| Life | Real-time gas data colection and automatic control, water station real-time monitoring and maintenance; |
| Scenic Area | WiFi covered, wireless network ads pushing and devices management; |
| Hotel | WiFi covered, wireless network ads pushing and device management; |
| Package Contents |
1x 4G Industrial Wireless Router 1x 4G Antenna 2x WiFi Antenna 1x Power Adapter 1x GPS Antenna(Optional) |
Operation Band
| LTE Cat 4 | EC25-E | EC25-EU | EC25-EUX | EC25-J |
| Region/Operator | EMEA/South Korea/Thailand/India | EMEA/Thailand | EMEA/Thailand | Japan |
| Dimensions(mm) | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 |
| Temperature Ranges | ||||
| Operating Temperature | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C |
| Extended Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Frequency Bands | ||||
| LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B7/B8/B20/B28A | B1/B3/B8/B18/B19/B26 |
| LTE-TDD | B38/B40/B41 | B38/B40/B41 | B38/B40/B41 | B41 |
| WCDMA | B1/B5/B8 | B1/B8 | B1/B8 | B1/B6/B8/B19 |
| GSM/EDGE | B3/B8 | B3/B8 | B3/B8 | / |
| GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
| Certifications | ||||
| Carrier |
Global: Vodafone Europe: Deutsche Telekom/Telefónica South Korea: SKT/KT*/LGU+* |
Europe: Deutsche Telekom/ British Telecom |
/ | Japan: NTT DOCOMO/SoftBank/KDDI |
| Regulatory |
Global: GCF Europe: CE South Korea: KC Taiwan (China): NCC Australia/New Zealand: RCM Thailand: NBTC Russia: FAC South Africa: ICASA |
Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM |
Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM |
Japan: JATE/TELEC |
| Others | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL |
| Data Transmission | ||||
| LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) |
| LTE-TDD Data Rates (Mbps) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) |
| DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) |
| WCDMA Data Rates (kbps) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) |
| EDGE Data Rates (kbps) | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) | / |
| GPRS Data Rates (kbps) | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) | / |
| Interfaces | ||||
| (U)SIM | x 1 | x 1 | x 1 | x 1 |
| UART | x 2 | x 2 | x 2 | x 2 |
| USB2.0 | x 1 | x 1 | x 1 | x 1 |
| Audio Digital(PCM) | x 1 | x 1 | x 1 | x 1 |
| I2C | x 1 | x 1 | x 1 | x 1 |
| SDIO | x 2 | x 2 | x 1 | x 2 |
| SGMII | x 1 | x 1 | x 1 | x 1 |
| Bluetooth* | x 1 | x 1 | / | x 1 |
| ADC | x 2 | x 2 | x 2 | x 2 |
| Voice | ||||
| Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB |
| Echo Arithmetic | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression |
| VoLTE | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
| Enhanced Features | ||||
| DTMF | ● | ● | ● | ● |
| DFOTA | ● | ● | ● | ● |
| QMI/RmNet | ● | ● | ● | ● |
| Audio Playback*/Audio Recording* | Optional | Optional | Optional | Optional |
| QuecLocator® | ● | ● | ● | ● |
| QuecFile® | ● | ● | ● | ● |
| (U)SIM Card Detection | ● | ● | ● | ● |
| Drivers | ||||
| USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
| GNSS Driver | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x |
| RIL Driver | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x |
| NDIS | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 |
| MBIM | Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
/ | Windows 8/8.1/10, Linux 3.18–5.4 |
| GobiNet Driver | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 |
| QMI_WWAN Driver | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 |
| Electrical Features | ||||
| Supply Voltage Range | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. |
| Power Consumption | 3.9 mA @ Sleep, Typ. 30 mA @ Idle |
3.4 mA @ Sleep, Typ. 23.3 mA @ Idle |
1.69 mA @ Sleep, Typ. 18.51 mA @ Idle |
3.2 mA @ Sleep, Typ. 31.5 mA @ Idle |
| LTE Cat 4 | EC25-A Mini PCIe | EC25-V Mini PCIe | EC25-AF Mini PCIe | EC25-AFX Mini PCIe |
| Region/Operator | North America | America Verizon | North America | North America |
| Dimensions(mm) | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 |
| Temperature Ranges | ||||
| Operating Temperature | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C |
| Extended Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Frequency Bands | ||||
| LTE-FDD | B2/B4/B12 | B4/B13 | B2/B4/B5/B12/B13/B14/B66/ | B2/B4/B5/B12/B13/B14/B66/B71 |
| LTE-TDD | / | / | / | / |
| WCDMA | B2/B4/B5 | / | B2/B4/B5 | B2/B4/B5 |
| GSM/EDGE | / | / | / | / |
| GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
| Certifications | ||||
| Carrier |
America: AT&T/T-Mobile Canada: Rogers/Telus |
America: Verizon |
America: Verizon/ AT&T (FirstNet)/T-Mobile Canada: Rogers/Telus |
America: Verizon/ AT&T (FirstNet)* |
| Regulatory |
America: FCC North America: PTCRB Canada: IC |
Global: GCF America: FCC |
Global: GCF America: FCC North America: PTCRB Canada: IC |
Global: GCF America: FCC North America: PTCRB Canada: IC |
| Others | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL |
| Data Transmission | ||||
| LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) |
| LTE-TDD Data Rates (Mbps) | / | / | / | / |
| DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) | / | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) |
| WCDMA Data Rates (kbps) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) |
| EDGE Data Rates (kbps) | / | / | / | / |
| GPRS Data Rates (kbps) | / | / | / | / |
| Interfaces | ||||
| (U)SIM | x 1 | x 1 | x 1 | x 1 |
| UART | x 1 | x 1 | x 1 | x 1 |
| USB2.0 | x 1 | x 1 | x 1 | x 1 |
| Audio Digital(PCM) | x 1 | x 1 | x 1 | x 1 |
| LED_WWAN# | x 1 | x 1 | x 1 | x 1 |
| W_DISABLE# | x 1 | x 1 | x 1 | x 1 |
| UART | x 1 | x 1 | x 1 | x 1 |
| PERST# | x 1 | x 1 | x 1 | x 1 |
| Voice | ||||
| Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB |
| Echo Arithmetic | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression |
| VoLTE | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
| Enhanced Features | ||||
| DTMF | ● | ● | ● | ● |
| DFOTA | ● | ● | ● | ● |
| QMI/RmNet | ● | ● | ● | ● |
| Audio Playback*/Audio Recording* | Optional | Optional | Optional | Optional |
| QuecLocator® | * | ● | ● | ● |
| QuecFile® | ● | ● | ● | ● |
| (U)SIM Card Detection | ● | ● | ● | ● |
| Drivers | ||||
| USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
| GNSS Driver | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x |
| RIL Driver | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x |
| NDIS | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 |
| MBIM | Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
| GobiNet Driver | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 |
| QMI_WWAN Driver | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 |
| Electrical Features | ||||
| Supply Voltage Range | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. |
| Power Consumption | 3.6 mA @ Sleep, Typ. 27 mA @ Idle |
3.4 mA @ Sleep, Typ. 30 mA @ Idle |
2.2 mA @ Sleep, Typ. 21.7 mA @ Idle |
1.67 mA @ Sleep, Typ. 22 mA @ Idle |
| LTE Cat 4 | EC25-MX Mini PCIe | EC25-AU Mini PCIe | EC25-AUX Mini PCIe | EG25-G Mini PCIe |
| Region/Operator | Mexico | Latin America/Australia/New Zealand | Latin America/Australia/New Zealand | Global |
| Dimensions(mm) | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 |
| Temperature Ranges | ||||
| Operating Temperature | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C |
| Extended Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Frequency Bands | ||||
| LTE-FDD | B2/B4/B5/B7/B28/B66 | B1/B2①/B3/B4/B5/B7/B8/B28 | B2/B4/B5/B12/B13/B14/B66/ | B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28 |
| LTE-TDD | / | B40 | B40 | B38/B39/B40/B41 |
| WCDMA | B2/B4/B5 | B1/B2/B5/B8 | B1/B2/B4/B5/B8 | B1/B2/B4/B5/B6/B8/B19 |
| GSM/EDGE | / | B2/B3/B5/B8 | B2/B3/B5/B8 | B2/B3/B5/B8 |
| GNSS | / | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
| Certifications | ||||
| Carrier | / | Australia: Telstra | / |
Europe: Deutsche Telekom America: Verizon/AT&T/U.S. Cellular Canada: Telus/Rogers* |
| Regulatory |
America: FCC North America: PTCRB Mexico: IFETEL |
Global: GCF America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM |
Europe: CE America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM |
Global: GCF Europe: CE UK: UKCA North America: PTCRB America: FCC Canada: IC Brazil: Anatel Mexico: IFETEL South Korea: KC Taiwan(China): NCC Japan: JATE/TELEC Australia & New Zealand: RCM South Africa: ICASA |
| Others | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL |
| Data Transmission | ||||
| LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) |
| LTE-TDD Data Rates (Mbps) | / | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) |
| DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) |
| WCDMA Data Rates (kbps) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) |
| EDGE Data Rates (kbps) | / | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) |
| GPRS Data Rates (kbps) | / | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) |
| Interfaces | ||||
| (U)SIM | x 1 | x 1 | x 1 | x 1 |
| UART | x 1 | x 1 | x 1 | x 1 |
| USB2.0 | x 1 | x 1 | x 1 | x 1 |
| Audio Digital(PCM) | x 1 | x 1 | x 1 | x 1 |
| LED_WWAN# | x 1 | x 1 | x 1 | x 1 |
| W_DISABLE# | x 1 | x 1 | x 1 | x 1 |
| UART | x 1 | x 1 | x 1 | x 1 |
| PERST# | x 1 | x 1 | x 1 | x 1 |
| Voice | ||||
| Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB |
| Echo Arithmetic | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression |
| VoLTE | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
| Enhanced Features | ||||
| DTMF | ● | ● | ● | ● |
| DFOTA | ● | ● | ● | ● |
| QMI/RmNet | ● | ● | ● | ● |
| Audio Playback*/Audio Recording* | Optional | Optional | Optional | Optional |
| QuecLocator® | ● | ● | ● | ● |
| QuecFile® | ● | ● | ● | ● |
| (U)SIM Card Detection | ● | ● | ● | ● |
| Drivers | ||||
| USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
| GNSS Driver | / | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x |
| RIL Driver | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x |
| NDIS | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 |
| MBIM | / | Windows 8/8.1/10, Linux 3.18–5.4 |
/ | Windows 8/8.1/10, Linux 3.18–5.4 |
| GobiNet Driver | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 |
| QMI_WWAN Driver | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 |
| Electrical Features | ||||
| Supply Voltage Range | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. |
| Power Consumption | 1.55 mA @ Sleep, Typ. 20 mA @ Idle |
2.6 mA @ Sleep, Typ. 22 mA @ Idle |
1.9 mA @ Sleep, Typ. 23.4 mA @ Idle |
1.9 mA @ Sleep, Typ. 23.4 mA @ Idle |
English
French
German
Italian
Russian
Spanish
