H.265 1080P 60FPS HDMI Video Encoder Decoder W/HDMI & Audio I/O, HLS RTMP RTSP SRT UDP ONVIF Hikvision for IPTV Live Stream to YouTube Facebook etc.
Regular price
$296.57 USD
Regular price
$156.57 USD
Sale price
$296.57 USD
Unit price
per
Couldn't load pickup availability
Overview
Specification
User Manual
Reviews
Overview

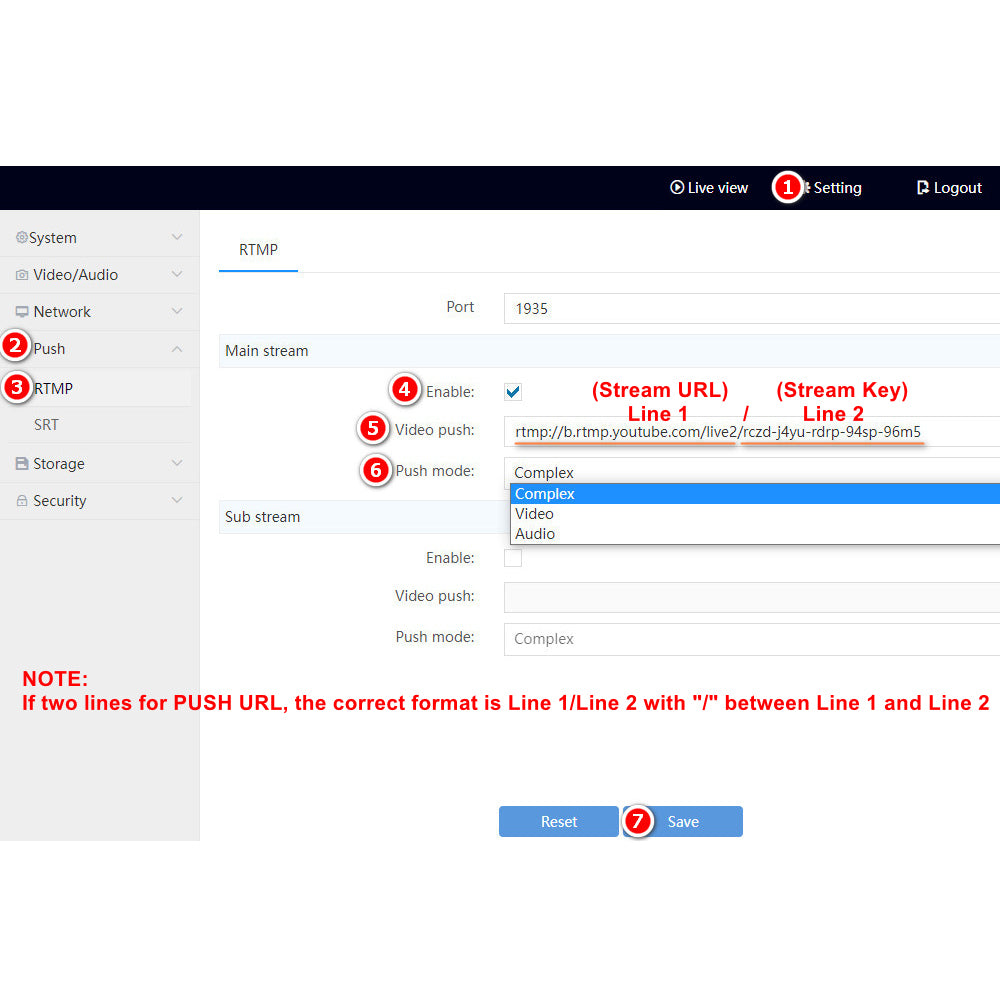

- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
- Multiple Interfaces - Not only equipped with HDMI input and audio input, but also with HDMI output and audio output which will be applicable for more scenarios such as test with HDMI loop-out. Besides, there's one more USB2.0 port for connecting to USB/WEB camera for live broadcasting.
- Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
Specification
|
SOC |
Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default) | |
| Model: ON-DMI-30D | ||
| Video Input: Up to 1080P@60FPS | ||
| Video Loopout: Up to 4K@30FPS | ||
| Video/Audio Encoding | Video Encoding: H.265/H.264 | |
| Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR) | ||
| Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-9Mbps(Configurable) | ||
| Frame Rate: 1-60fps(Configurable) | ||
| Main Stream: 1920*1080, 1600*900, 1440*1050, 1440*900, 1360*768, 1280*1024, 1280*720, 1280*800, 1280*768, 1024*768, 1024*576, 960*540, 850*480, 800*600, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360, 352*288, 320*240 | ||
| Sub Stream: 1920*1080, 1280*720, 1024*768, 1024*576, 960*540, 850*480, 800*600, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480 | ||
|
TS Stream |
Channel 1 |
http://192.168.1.88/ts/1_0(Main Stream) http://192.168.1.88/ts/1_1(Sub Stream) |
| Channel 2 |
http://192.168.1.88/ts/2_0(Main Stream) http://192.168.1.88/ts/2_1(Sub Stream) |
|
| Channel 3 | http://192.168.1.88/ts/3_0(Main Stream) | |
| Channel 4 | http://192.168.1.88/ts/4_0(Main Stream) | |
|
HLS Stream |
Channel 1 |
http://192.168.1.88/hls/1_0.m3u8(Main Stream) http://192.168.1.88/hls/1_1.m3u8(Sub Stream) |
| Channel 2 |
http://192.168.1.88/hls/2_0.m3u8(Main Stream) http://192.168.1.88/hls/2_1.m3u8(Sub Stream) |
|
| Channel 3 | http://192.168.1.88/hls/3_0.m3u8(Main Stream) | |
| Channel 4 | http://192.168.1.88/hls/4_0.m3u8(Main Stream) | |
|
RTSP Stream |
Channel 1 |
rtsp://192.168.1.88:554/live/1_0(Main Stream) rtsp://192.168.1.88:554/live/1_1(Sub Stream) |
| Channel 2 |
rtsp://192.168.1.88:554/live/2_0(Main Stream) rtsp://192.168.1.88:554/live/2_1(Sub Stream) |
|
| Channel 3 | rtsp://192.168.1.88:554/live/3_0(Main Stream) | |
| Channel 4 | rtsp://192.168.1.88:554/live/4_0(Main Stream) | |
| Protocols | TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、SRT、TS、UDP、ONVIF | |
| Interface | Network Port: RJ45 10M/100M Self Adaptive Ethernet Port | |
| HDMI: 1ch HDMI Input, 1ch HDMI Ouptut | ||
| Audio: 1ch 3.5mm Line-in Port, 1ch 3.5mm Line-Out Port | ||
| Power: 1ch DC12V Power Input | ||
| Reset: 1ch Reset(Press it for more than 5 seconds to reset) | ||
| USB: 1ch USB2.0 (Used for Connecting to USB Camera, H.264 Encoding Only, YUV Not Supported) | ||
|
Others |
Operating Temperature: -10℃~+55℃[14°F~131°F] | |
| Operating Humidity: ≤95%(Non-Condensing) | ||
| Power Supply: DC12V 1A or Higher | ||
| Power Consumption: ≤3W | ||
| Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in] | ||
| Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in] | ||
| Net Weight: 186g[0.41lb, 6.56oz] | ||
| Gross Weight: 385g[0.85lb, 13.58oz] | ||
|
Application |
IPTV Satellite Modulator/Hotel TV System | |
| CCTV Camera/Camcorder | ||
| UAV Image Transmission/DLSR Camera | ||
| Drone/DV/FPV/Medical Equipment | ||
| Digital Signage/Video Conference | ||
| Online Live Streaming Broadcast or Server | ||
| Teaching/Campus Broadcast/Telemedicine | ||
| Multimedia Stitching Display | ||
| NVR/Recording System | ||
|
Package Include |
1x HDMI Video Encoder | |
| 1x DC12V 1A Power Adapter | ||
| 1x HDMI Cable(1M) | ||
| 1x Ethernet Cable(1M) | ||
| 1x Live Broadcasting Quick Guide | ||
