H.265 1080P 60FPS HDMI Video Encoder Decoder W/HDMI & Audio I/O, HLS RTMP RTSP SRT UDP ONVIF Hikvision for IPTV Live Stream to YouTube Facebook etc.

Name: H.265 1080P 60FPS HDMI Video Encoder Decoder W/HDMI & Audio I/O, HLS RTMP RTSP SRT UDP ONVIF Hikvision for IPTV Live Stream to YouTube Facebook etc.
Brand: JTOKEN Official Store
SKU: HVE30D
Price: 296.57 USD
Availability: InStock

Model ON-DMI-30D

Plug Type EU Plug US Plug AU Plug UK Plug

Product variants

$296.57 USD

Sold out

Quantity

Overview

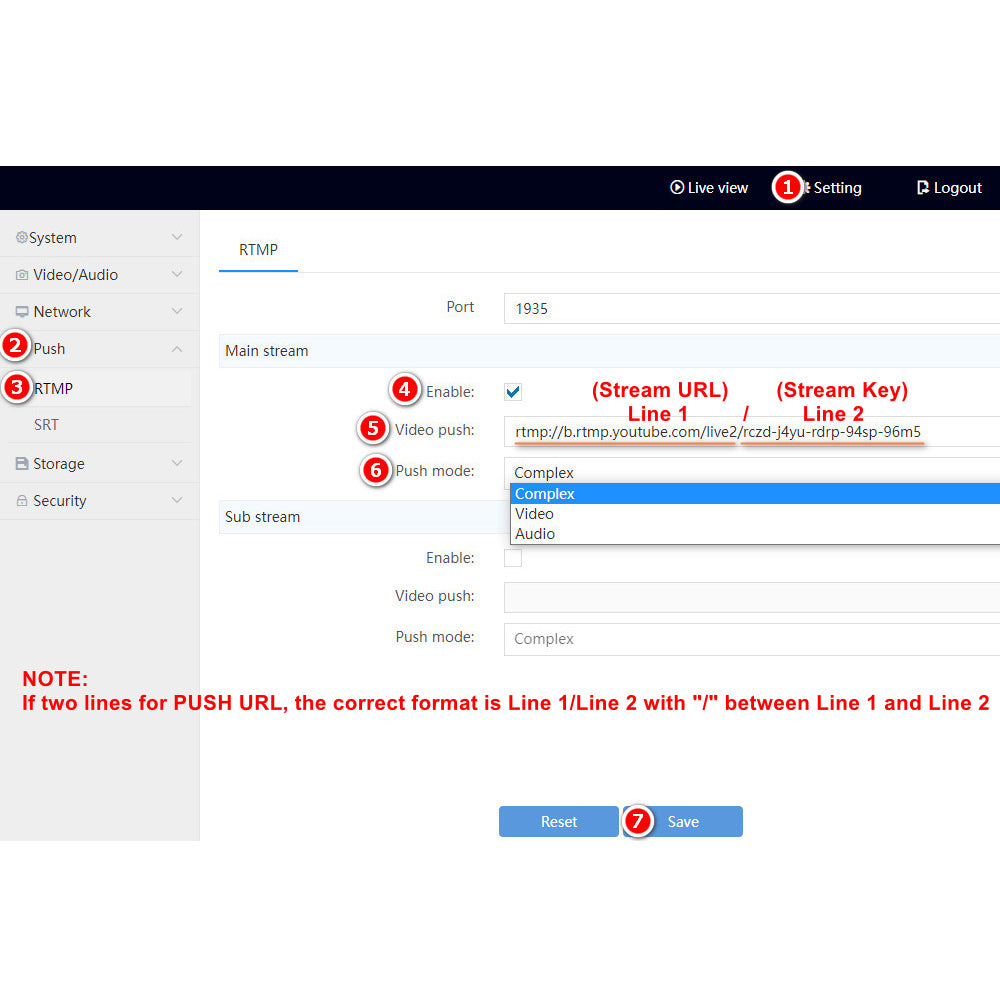

Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.
Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.

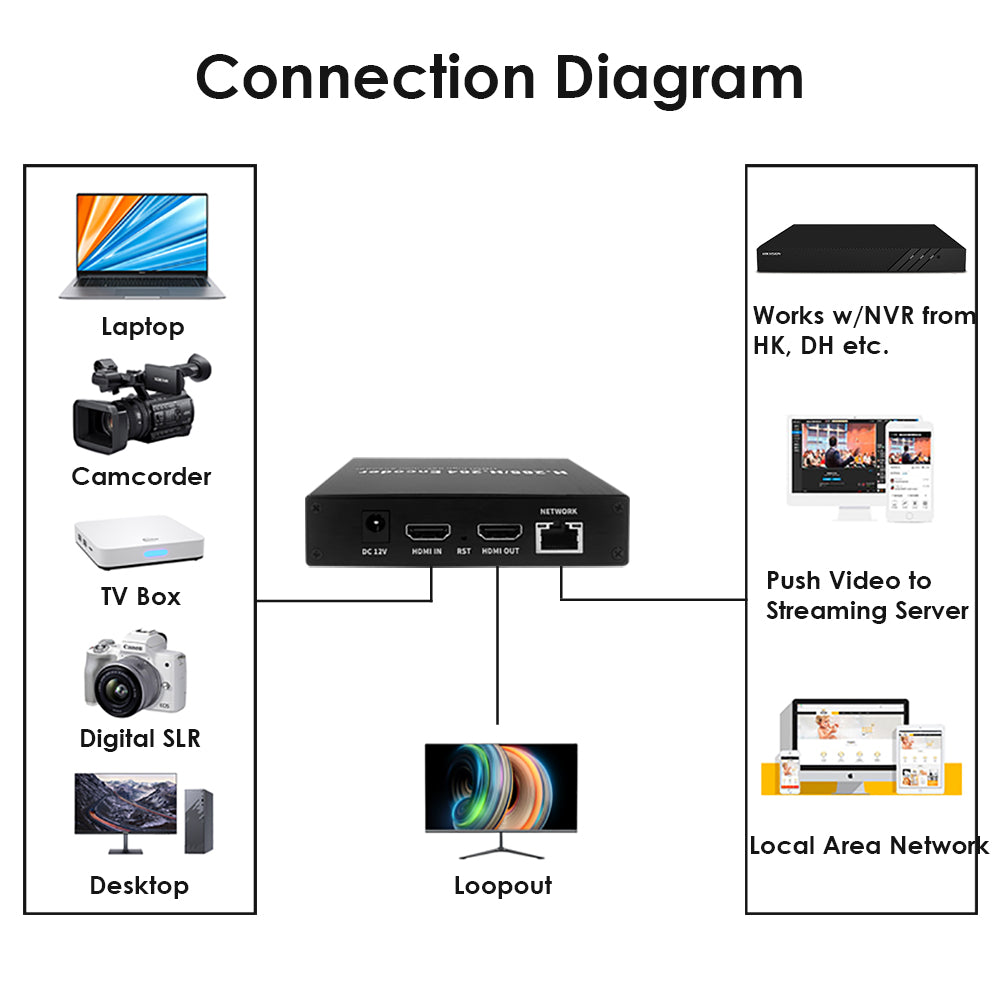

Multiple Interfaces - Not only equipped with HDMI input and audio input, but also with HDMI output and audio output which will be applicable for more scenarios such as test with HDMI loop-out. Besides, there's one more USB2.0 port for connecting to USB/WEB camera for live broadcasting.

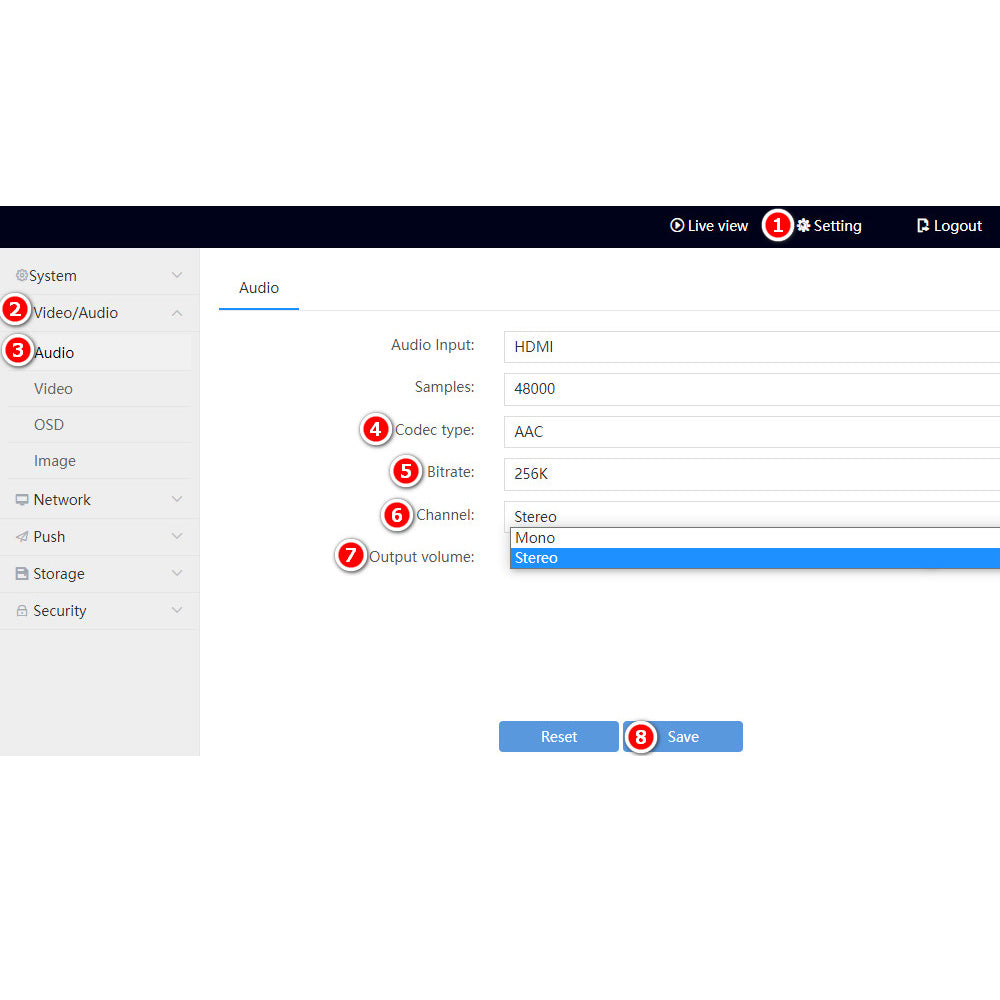

Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.

Specification

SOC	Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
	Model: ON-DMI-30D
	Video Input: Up to 1080P@60FPS
	Video Loopout: Up to 4K@30FPS
Video/Audio Encoding	Video Encoding: H.265/H.264
	Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
	Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-9Mbps(Configurable)
	Frame Rate: 1-60fps(Configurable)
	Main Stream: 19201080, 1600900, 14401050, 1440900, 1360768, 12801024, 1280720, 1280800, 1280768, 1024768, 1024576, 960540, 850480, 800600, 720576, 720540, 720480, 720404, 704576, 640480, 640360, 352288, 320*240
	Sub Stream: 19201080, 1280720, 1024768, 1024576, 960540, 850480, 800600, 720576, 720540, 720480, 720404, 704576, 640*480
TS Stream	Channel 1	http://192.168.1.88/ts/1_0(Main Stream) http://192.168.1.88/ts/1_1(Sub Stream)
	Channel 2	http://192.168.1.88/ts/2_0(Main Stream) http://192.168.1.88/ts/2_1(Sub Stream)
	Channel 3	http://192.168.1.88/ts/3_0(Main Stream)
	Channel 4	http://192.168.1.88/ts/4_0(Main Stream)
HLS Stream	Channel 1	http://192.168.1.88/hls/1_0.m3u8(Main Stream) http://192.168.1.88/hls/1_1.m3u8(Sub Stream)
	Channel 2	http://192.168.1.88/hls/2_0.m3u8(Main Stream) http://192.168.1.88/hls/2_1.m3u8(Sub Stream)
	Channel 3	http://192.168.1.88/hls/3_0.m3u8(Main Stream)
	Channel 4	http://192.168.1.88/hls/4_0.m3u8(Main Stream)
RTSP Stream	Channel 1	rtsp://192.168.1.88:554/live/1_0(Main Stream) rtsp://192.168.1.88:554/live/1_1(Sub Stream)
	Channel 2	rtsp://192.168.1.88:554/live/2_0(Main Stream) rtsp://192.168.1.88:554/live/2_1(Sub Stream)
	Channel 3	rtsp://192.168.1.88:554/live/3_0(Main Stream)
	Channel 4	rtsp://192.168.1.88:554/live/4_0(Main Stream)

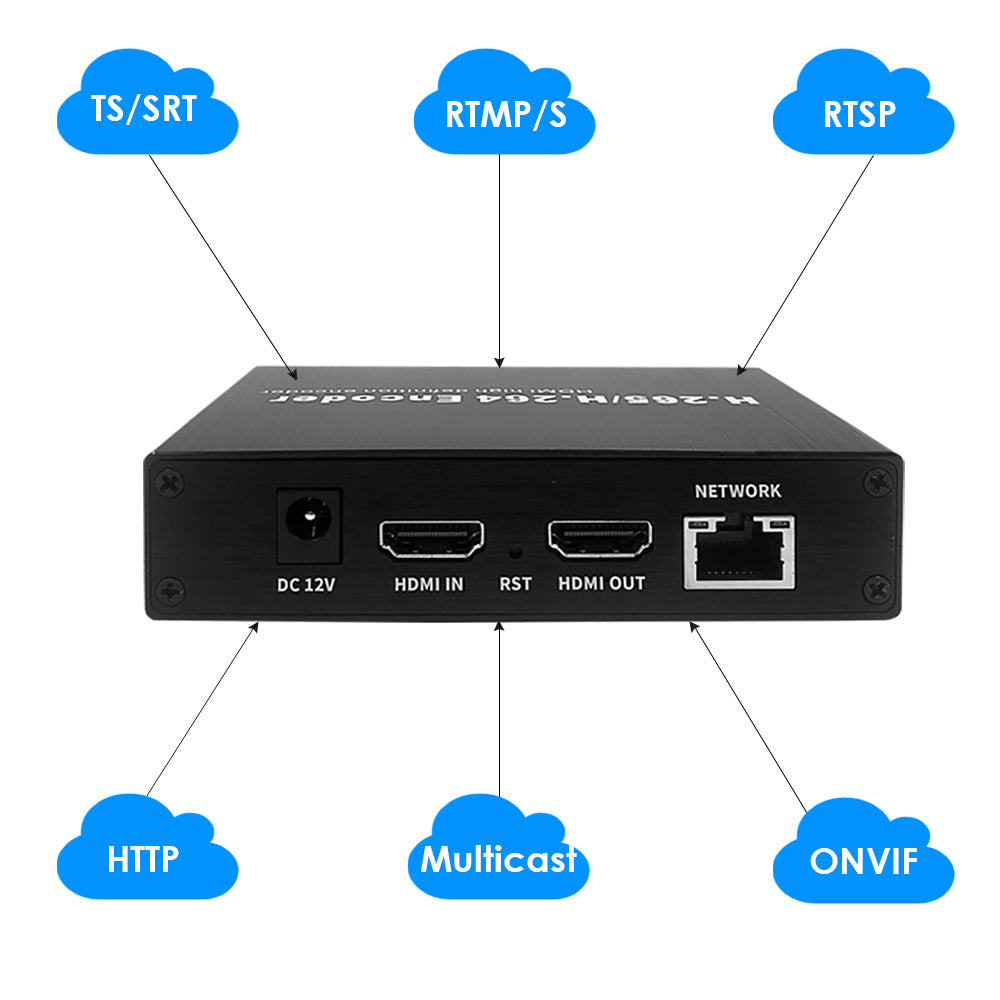

Protocols	TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、SRT、TS、UDP、ONVIF

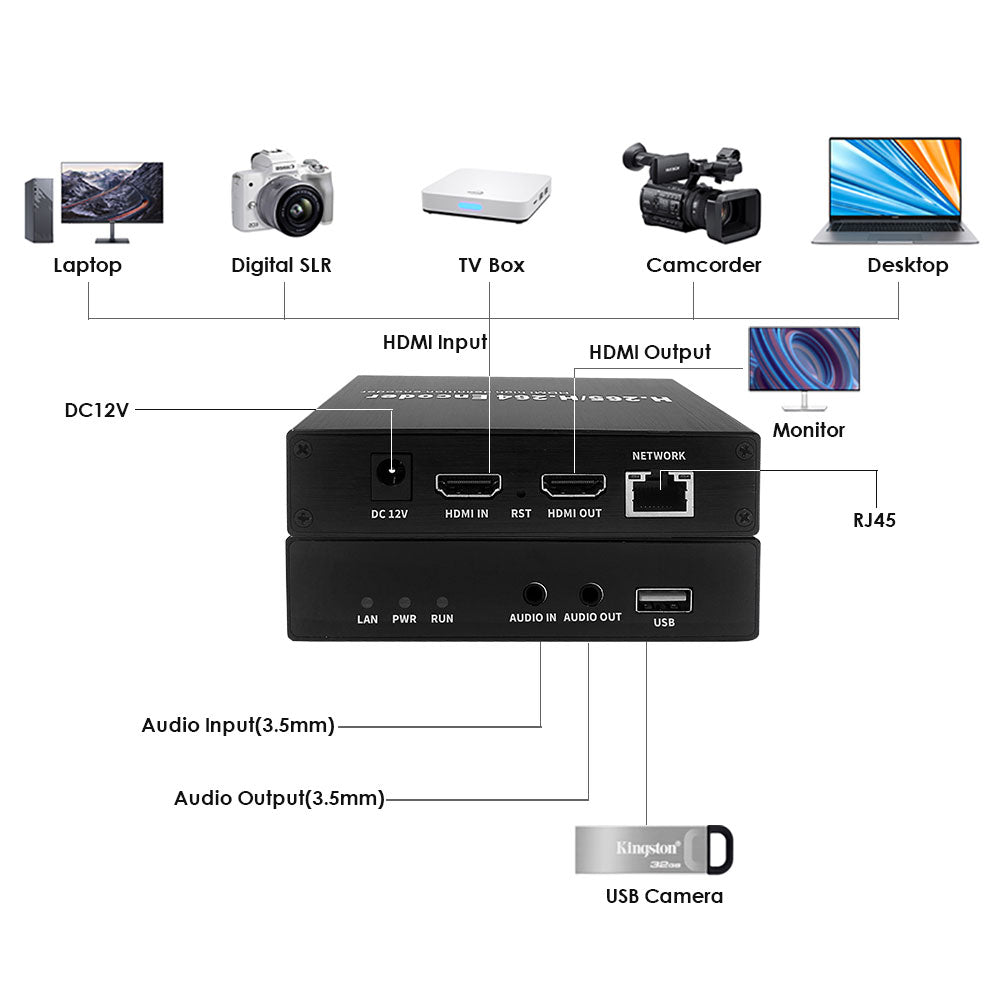

Interface	Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
	HDMI: 1ch HDMI Input, 1ch HDMI Ouptut
	Audio: 1ch 3.5mm Line-in Port, 1ch 3.5mm Line-Out Port
	Power: 1ch DC12V Power Input
	Reset: 1ch Reset(Press it for more than 5 seconds to reset)
	USB: 1ch USB2.0 (Used for Connecting to USB Camera, H.264 Encoding Only, YUV Not Supported)
Others	Operating Temperature: -10℃~+55℃[14°F~131°F]
	Operating Humidity: ≤95%(Non-Condensing)
	Power Supply: DC12V 1A or Higher
	Power Consumption: ≤3W
	Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
	Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in]
	Net Weight: 186g[0.41lb, 6.56oz]
	Gross Weight: 385g[0.85lb, 13.58oz]
Application	IPTV Satellite Modulator/Hotel TV System
	CCTV Camera/Camcorder
	UAV Image Transmission/DLSR Camera
	Drone/DV/FPV/Medical Equipment
	Digital Signage/Video Conference
	Online Live Streaming Broadcast or Server
	Teaching/Campus Broadcast/Telemedicine
	Multimedia Stitching Display
	NVR/Recording System
Package Include	1x HDMI Video Encoder
	1x DC12V 1A Power Adapter
	1x HDMI Cable(1M)
	1x Ethernet Cable(1M)
	1x Live Broadcasting Quick Guide

User Manual
