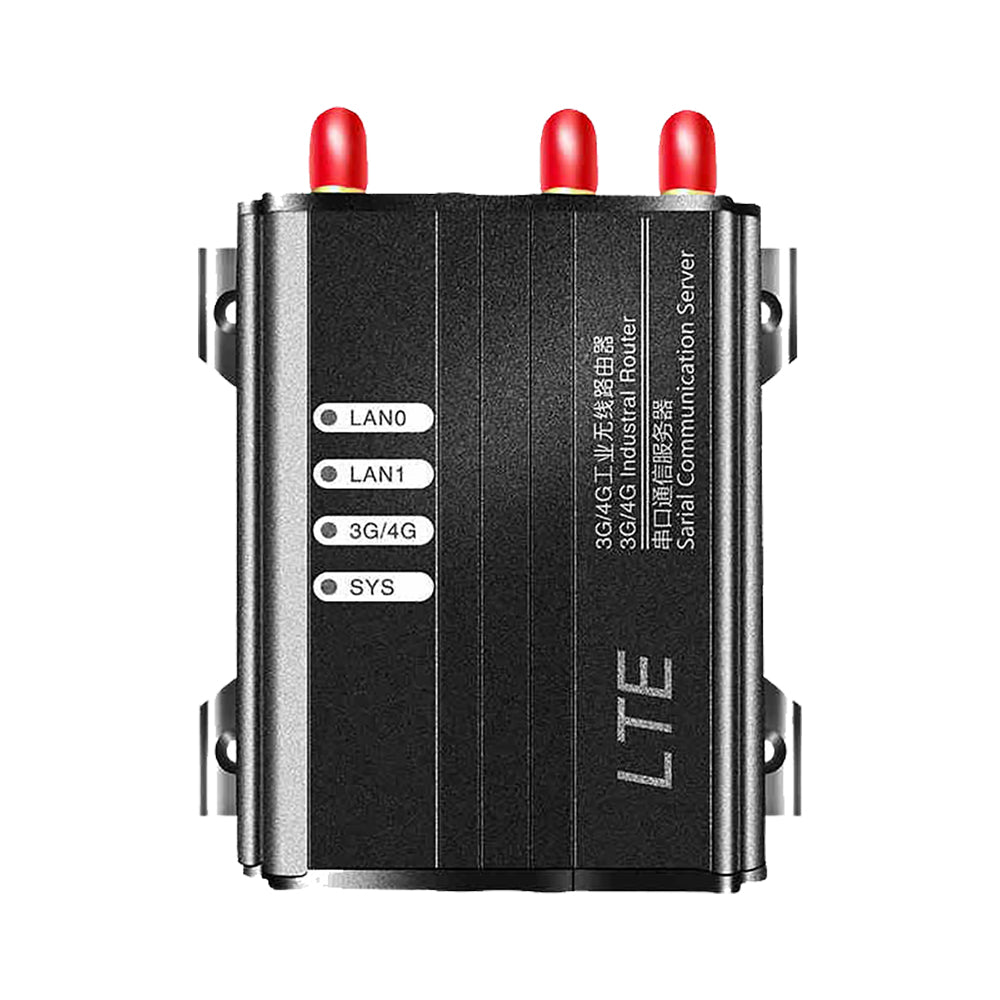

4G LTE WiFi Router w/Quectel EG25G Cat 4 Module SIM Card Slot Wide Voltage DC7-35V VPN PPTP L2TP

Name: 4G LTE WiFi Router w/Quectel EG25G Cat 4 Module SIM Card Slot Wide Voltage DC7-35V VPN PPTP L2TP
Brand: JTOKEN Official Store
SKU: 4GRV519EG25G
Price: 151.57 USD
Availability: InStock

Module EG25-G

Antenna W/O GPS Antenna W/GPS Antenna

Product variants

$151.57 USD

Sold out

Quantity

Overview

V519-industrial 3G/4G router-adopts high performance 32-bit processor, high speed process protocol and large data, equipped with multiply 3G/4G industrial modules(WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE), provides 10/100M adaptive ethernet port, WiFi wireless port, serial port, integrated with multiply terminal devices,easy to do configuration via WEB and remote control.

Applicable industries:

Electrical, oil, coal, finance, communication, public security, heat, industrial control, meteorological, water conversancy, transportation, municipal administration etc.

Specification

Parameters of WiFi
Basics	Max. Transmission Rate: 300Mbps.
	Working Band: 2.4GHz.
	Wireless Mode(Option): 11b/g/n/, 11bg mixed , 11bam mixed (Def).
	Wireless Mode(Option): 11a/n on1y 11an mixed(Def).
	SSID Broadcast Switch Supported.
Quantity of Users	30x WiFi Users Connected Simultaneously Supported.
Quantity of Users	200x Users via Ethernet Cable Connected Simultaneously Supported.
Safety Parameters	Support WPA(Individual)/WPA2(Individual)/WPA-Mixed(Individual).
Safety Parameters	Support TKIP/AES/Auto Encryption Algorithm.
Transmission Distance	Outdoor Without Barriers Up to 200 Meters.
Parameters of System
GPU	Industrial High Performance Embedded MIPS CPU, main frequency 580Mhz.
MMU	With MMU memory management unit built-in CPU, it can prevent system abnormality caused by memory spilling.
FLASH	128 Mbits, have enough memory to store program and data.
DDR2	1024 Mbits, have enough cache to improve arithmetic speed of system.
Parameters of Interfaces
WAN	1x 10/100M adaptive WAN port, isolation built-in, auto flip supported (Auto, MDI, MDIX), PPOE supported.
Serial Port	RS232
Indicators	4x Indicators.
Antenna Port	3x Antenna Ports, Standard SMA Antenna Port.
USIM Slot	1x SIM Slot
Power Port	Standard DC connector.
Parameters of Power
Input Voltage	Wide voltage designed, DC7-35V, adapter can power it on directly and it has buit-in power reverse and over-voltage/current protection.
Adapter	DC12V 1.5A
Communication Current	<300mA
Standby Current	<150mA
Other Parameters
Case	Adopt metal case, anti-radiation/interference, safe isolation between case and system, lightningproof, applicable for serious conditions.
Outline Dimension	82mm82mm24mm(3.2in3.2in0.9in)
Package Dimension	250mm170mm75mm(9.8in6.7in2.9in)
Weight	394g(0.87lb, 13.9oz)
Operation Temperature	-40°C~+85°C(-40°F~+185°F)
Storage Temperature	-50°C~+95°C(-58°F~+203°F)
Humidity	95% (Non-Condensing)
Typical Application(WiFi Covered Application)
Finance	Center monitoring, mobile stock transaction and info inquiry;
Communication	Power environment monitoring, electric circuit information inquiry;
Traffic	GPRS, SMS, GPS vehicle monitoring and dispatch, banknote transport monitoring, school bus monitorning;
Power	Power system realtime dynamic monitoring and auto compensation;
Heat	Heating system real-time monitoring and maintenance;
Police	Vehicles of police station, 911 and traffic police monitoring and dispatch Security mobile data inquiry like(ID verification, wanted, child lost information etc.) Mobile traffic communication data inquiry like licence plate etc.;
Work Site	Mobile work management, other outdoor staff mobile data inquiry;
Weather	Data collection & transmission
Charge	Charging station monitoring & management, data transmission;
Water Resource	Quantity of water monitoring and transmission;
Life	Real-time gas data colection and automatic control, water station real-time monitoring and maintenance;
Scenic Area	WiFi covered, wireless network ads pushing and devices management;
Hotel	WiFi covered, wireless network ads pushing and device management;
Package Contents	1x 4G Industrial Wireless Router 1x 4G Antenna 2x WiFi Antenna 1x Power Adapter 1x GPS Antenna(Optional)

Operation Band

LTE Cat 4	EC25-E	EC25-EU	EC25-EUX	EC25-J
Region/Operator	EMEA/South Korea/Thailand/India	EMEA/Thailand	EMEA/Thailand	Japan
Dimensions(mm)	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9
Temperature Ranges
Operating Temperature	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C
Extended Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Frequency Bands
LTE-FDD	B1/B3/B5/B7/B8/B20	B1/B3/B7/B8/B20/B28A	B1/B3/B7/B8/B20/B28A	B1/B3/B8/B18/B19/B26
LTE-TDD	B38/B40/B41	B38/B40/B41	B38/B40/B41	B41
WCDMA	B1/B5/B8	B1/B8	B1/B8	B1/B6/B8/B19
GSM/EDGE	B3/B8	B3/B8	B3/B8	/
GNSS	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)
Certifications
Carrier	Global: Vodafone Europe: Deutsche Telekom/Telefónica South Korea: SKT/KT/LGU+	Europe: Deutsche Telekom/ British Telecom	/	Japan: NTT DOCOMO/SoftBank/KDDI
Regulatory	Global: GCF Europe: CE South Korea: KC Taiwan (China): NCC Australia/New Zealand: RCM Thailand: NBTC Russia: FAC South Africa: ICASA	Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM	Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM	Japan: JATE/TELEC
Others	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL
Data Transmission
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)	/
GPRS Data Rates (kbps)	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)	/
Interfaces
(U)SIM	x 1	x 1	x 1	x 1
UART	x 2	x 2	x 2	x 2
USB2.0	x 1	x 1	x 1	x 1
Audio Digital(PCM)	x 1	x 1	x 1	x 1
I2C	x 1	x 1	x 1	x 1
SDIO	x 2	x 2	x 1	x 2
SGMII	x 1	x 1	x 1	x 1
Bluetooth*	x 1	x 1	/	x 1
ADC	x 2	x 2	x 2	x 2
Voice
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)
Enhanced Features
DTMF	●	●	●	●
DFOTA	●	●	●	●
QMI/RmNet	●	●	●	●
Audio Playback/Audio Recording	Optional	Optional	Optional	Optional
QuecLocator®	●	●	●	●
QuecFile®	●	●	●	●
(U)SIM Card Detection	●	●	●	●
Drivers
USB Serial Driver	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
GNSS Driver	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x
RIL Driver	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10
MBIM	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4	/	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4
Electrical Features
Supply Voltage Range	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.
Power Consumption	3.9 mA @ Sleep, Typ. 30 mA @ Idle	3.4 mA @ Sleep, Typ. 23.3 mA @ Idle	1.69 mA @ Sleep, Typ. 18.51 mA @ Idle	3.2 mA @ Sleep, Typ. 31.5 mA @ Idle

LTE Cat 4	EC25-A Mini PCIe	EC25-V Mini PCIe	EC25-AF Mini PCIe	EC25-AFX Mini PCIe
Region/Operator	North America	America Verizon	North America	North America
Dimensions(mm)	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9
Temperature Ranges
Operating Temperature	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C
Extended Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Frequency Bands
LTE-FDD	B2/B4/B12	B4/B13	B2/B4/B5/B12/B13/B14/B66/	B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD	/	/	/	/
WCDMA	B2/B4/B5	/	B2/B4/B5	B2/B4/B5
GSM/EDGE	/	/	/	/
GNSS	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)
Certifications
Carrier	America: AT&T/T-Mobile Canada: Rogers/Telus	America: Verizon	America: Verizon/ AT&T (FirstNet)/T-Mobile Canada: Rogers/Telus	America: Verizon/ AT&T (FirstNet)*
Regulatory	America: FCC North America: PTCRB Canada: IC	Global: GCF America: FCC	Global: GCF America: FCC North America: PTCRB Canada: IC	Global: GCF America: FCC North America: PTCRB Canada: IC
Others	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL
Data Transmission
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	/	/	/	/
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)	/	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	/	/	/	/
GPRS Data Rates (kbps)	/	/	/	/
Interfaces
(U)SIM	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
USB2.0	x 1	x 1	x 1	x 1
Audio Digital(PCM)	x 1	x 1	x 1	x 1
LED_WWAN#	x 1	x 1	x 1	x 1
W_DISABLE#	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
PERST#	x 1	x 1	x 1	x 1
Voice
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)
Enhanced Features
DTMF	●	●	●	●
DFOTA	●	●	●	●
QMI/RmNet	●	●	●	●
Audio Playback/Audio Recording	Optional	Optional	Optional	Optional
QuecLocator®	*	●	●	●
QuecFile®	●	●	●	●
(U)SIM Card Detection	●	●	●	●
Drivers
USB Serial Driver	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
GNSS Driver	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x
RIL Driver	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10
MBIM	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4
Electrical Features
Supply Voltage Range	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.
Power Consumption	3.6 mA @ Sleep, Typ. 27 mA @ Idle	3.4 mA @ Sleep, Typ. 30 mA @ Idle	2.2 mA @ Sleep, Typ. 21.7 mA @ Idle	1.67 mA @ Sleep, Typ. 22 mA @ Idle

LTE Cat 4	EC25-MX Mini PCIe	EC25-AU Mini PCIe	EC25-AUX Mini PCIe	EG25-G Mini PCIe
Region/Operator	Mexico	Latin America/Australia/New Zealand	Latin America/Australia/New Zealand	Global
Dimensions(mm)	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9	30.0 x 51.0 x 4.9
Temperature Ranges
Operating Temperature	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C	-35°C to +75°C
Extended Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Frequency Bands
LTE-FDD	B2/B4/B5/B7/B28/B66	B1/B2①/B3/B4/B5/B7/B8/B28	B2/B4/B5/B12/B13/B14/B66/	B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28
LTE-TDD	/	B40	B40	B38/B39/B40/B41
WCDMA	B2/B4/B5	B1/B2/B5/B8	B1/B2/B4/B5/B8	B1/B2/B4/B5/B6/B8/B19
GSM/EDGE	/	B2/B3/B5/B8	B2/B3/B5/B8	B2/B3/B5/B8
GNSS	/	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional)
Certifications
Carrier	/	Australia: Telstra	/	Europe: Deutsche Telekom America: Verizon/AT&T/U.S. Cellular Canada: Telus/Rogers*
Regulatory	America: FCC North America: PTCRB Mexico: IFETEL	Global: GCF America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM	Europe: CE America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM	Global: GCF Europe: CE UK: UKCA North America: PTCRB America: FCC Canada: IC Brazil: Anatel Mexico: IFETEL South Korea: KC Taiwan(China): NCC Japan: JATE/TELEC Australia & New Zealand: RCM South Africa: ICASA
Others	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL	RoHS/WHQL
Data Transmission
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	/	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)	130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	/	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)	296 (DL)/ 236.8 (UL)
GPRS Data Rates (kbps)	/	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)	107 (DL)/ 85.6 (UL)
Interfaces
(U)SIM	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
USB2.0	x 1	x 1	x 1	x 1
Audio Digital(PCM)	x 1	x 1	x 1	x 1
LED_WWAN#	x 1	x 1	x 1	x 1
W_DISABLE#	x 1	x 1	x 1	x 1
UART	x 1	x 1	x 1	x 1
PERST#	x 1	x 1	x 1	x 1
Voice
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)	Digital Audio and VoLTE (Voice over LTE) (Optional)
Enhanced Features
DTMF	●	●	●	●
DFOTA	●	●	●	●
QMI/RmNet	●	●	●	●
Audio Playback/Audio Recording	Optional	Optional	Optional	Optional
QuecLocator®	●	●	●	●
QuecFile®	●	●	●	●
(U)SIM Card Detection	●	●	●	●
Drivers
USB Serial Driver	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x	Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x
GNSS Driver	/	Android 4.x–9.x	Android 4.x–9.x	Android 4.x–9.x
RIL Driver	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10	Windows 7/8/8.1/10
MBIM	/	Windows 8/8.1/10, Linux 3.18–5.4	/	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4	Linux 3.4–5.4
Electrical Features
Supply Voltage Range	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.	3.0–3.6V, 3.3 V Typ.
Power Consumption	1.55 mA @ Sleep, Typ. 20 mA @ Idle	2.6 mA @ Sleep, Typ. 22 mA @ Idle	1.9 mA @ Sleep, Typ. 23.4 mA @ Idle	1.9 mA @ Sleep, Typ. 23.4 mA @ Idle
